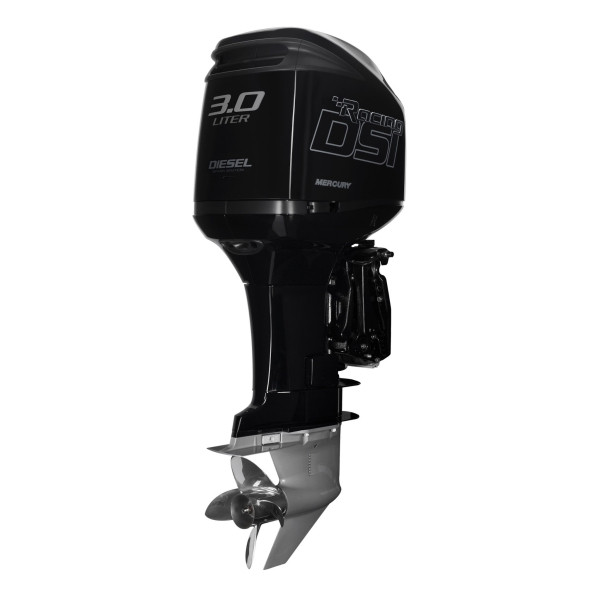

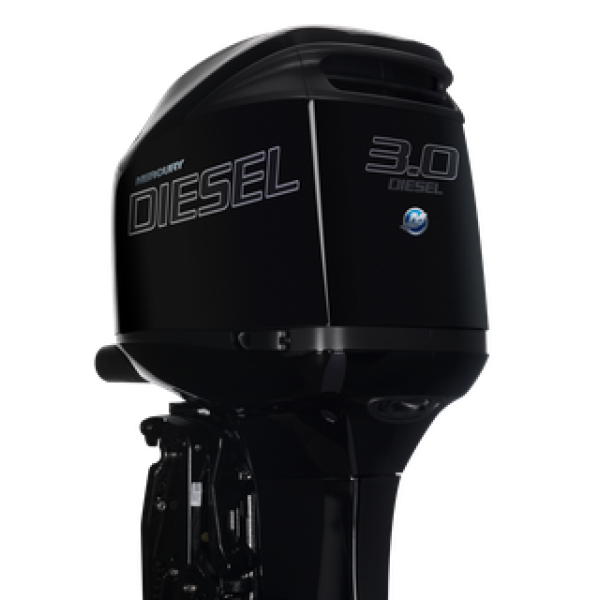

Mercury 175HP 3.0L Outboard Diesel Engine

A two-stage direct-injection system uses a small charge of compressed air to finely atomize the diesel fuel as it injects it into the combustion chamber. Atomizing the fuel into a fine mist allows for ignition via spark to occur while delivering enhanced high rpm running quality. A glow plug works in concert with the spark plug for improved cold weather starting and idle quality. An on-board Propulsion Control Module (PCM) microprocessor optimizes fuel and spark timing for improved running quality and performance throughout the engine's operating range. SmartCraft® Engine Guardian provides real-time, self-protection engine fault diagnostics and messaging.

Key Features

Available with a 25” (635 mm) center section and the 2:1 Fleet Master gearcase in both right-hand and left-hand rotation.
Industry-exclusive spark ignition diesel engine. Glow plug ensures consistent, reliable cold starting.
Commercial patrol boat models meet EPA emissions standards.
Cylinder heads designed specifically for combusting diesel fuel.
High performance cylinder liners for maximum horsepower and optimal engine running quality.
Fuel/air mixture is injected into the combustion chamber at 95 psi for enhanced high rpm running quality.

The Mercury Diesel Outboard is a diesel two-stroke designed for light duty commercial patrol boat applications. The EPA certified engine joins the U.S. Department of Defense spec diesel outboard Mercury Marine released in May 2015. The Mercury Diesel Outboard features exclusive spark ignition, direct fuel injected 2-stroke technology which enables it to run on readily available ultra-low sulfur diesel fuel.

SPECIFICATIONS

HP: 175 HP (131 kW)
Engine type: V6
Displacement: 186 CID (3,046 cc)
Displacement: 3.0 L
Full throttle: 5000-6000 RPM
Shaft length: 25 in. (635 mm)
Gearcase ratio: 2.08:1
Dry weight *Lightest model available: 528 lbs (240 kg)
Bore and stroke: 3.63 x 3.00 in (921 x 762 mm)
Fuel system: 2-stage Direct Fuel Injection (DFI)
Cooling system: Water-cooled with thermostat & pressure-controlled
Gear shift: F-N-R
Exhaust system: Through prop
